Pallet Conveyors——Chain and accessories

Pallet conveyors handle individual products on product carriers such as pallets. Based on the standard chain conveyor components, single-track pallet systems are a cost-efficient solution to handle smaller and lightweight products. For products with a considerable size or weight, a twin-track pallet system is the right choice.

The chain and accessories in the pallet conveyor is suitable for auto parts、 new energy 、automation products and on, among which the toothed  and the hight-strength transmission flat blet  are more stable and low noise, the Higher bite of the tooth belt higher, the hight-strength transmission flat blet  price is lower, and the roller chain is suitable for heavy or large pallets, which can achieve accumulation transportation






Product Detail

Product Tags

186154D9-7FF6-438a-B745-0B2244E74138 Width Height Pitch Back radius Weight Max load Max total load Conveying lenghth Speed
 toothed(>68) 25 2.5 5 17.5 2.00 1 30 0.4-6 <20



0F493658-56BA-481c-AF4D-07A6D0B69A24 Length Width Hight Back radius Weight Max load Max total load Conveying lenghth Speed
Hight-strength transmission 50M 30 1.8 60 0.70 1 75 0.4-12 <20

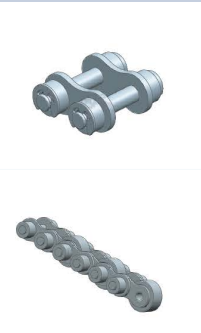

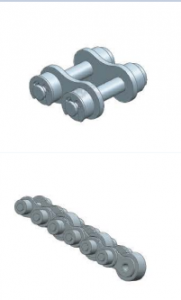

lQLPJxppCBDvRTbMqs0BtLD7dxTpRTKVgwR_7QHWAKMA_436_170 Length Multiple Pitch Weight Max load Max total load  Conveying lenghth Speed
Roller chain 5M 1 12.7 3.5/0.01
1.5
2.0



600
1100



0.6~12 <20
