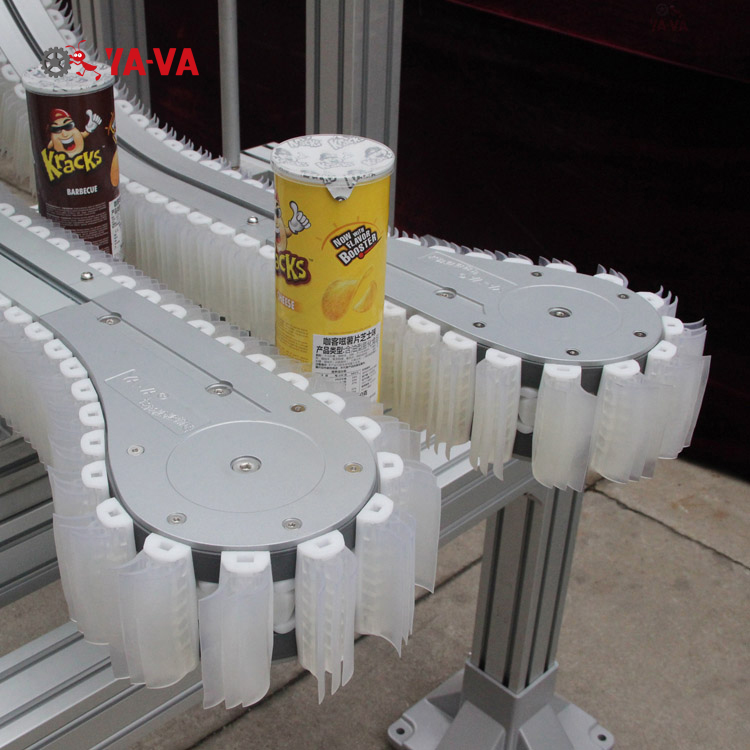

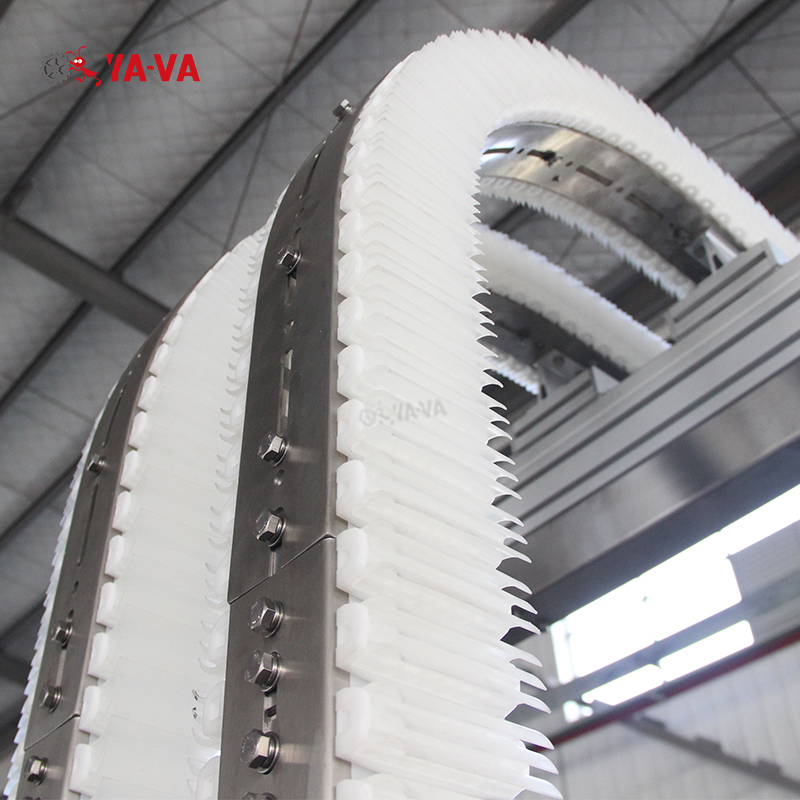

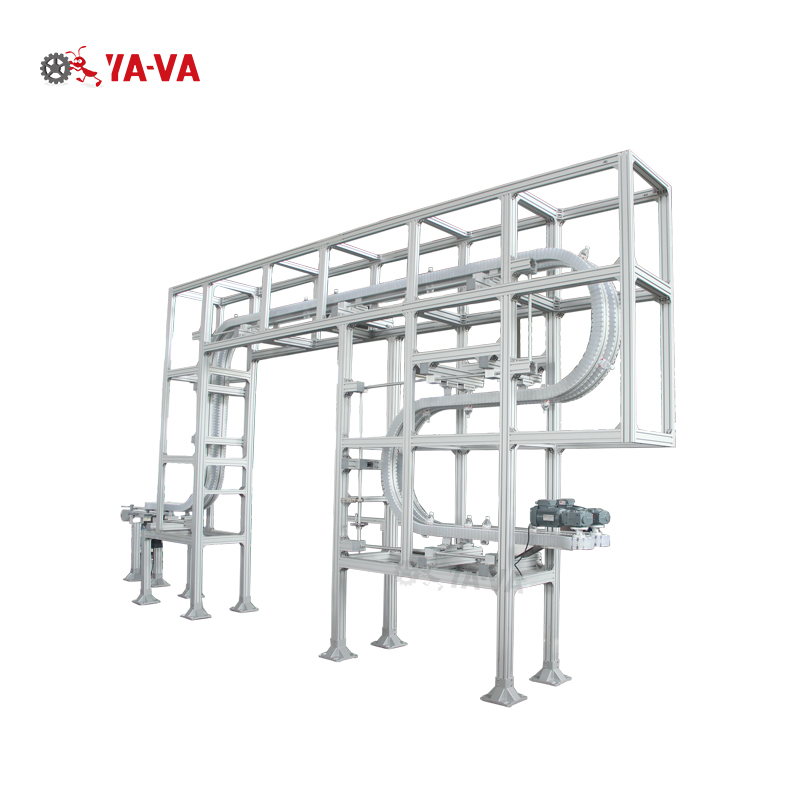

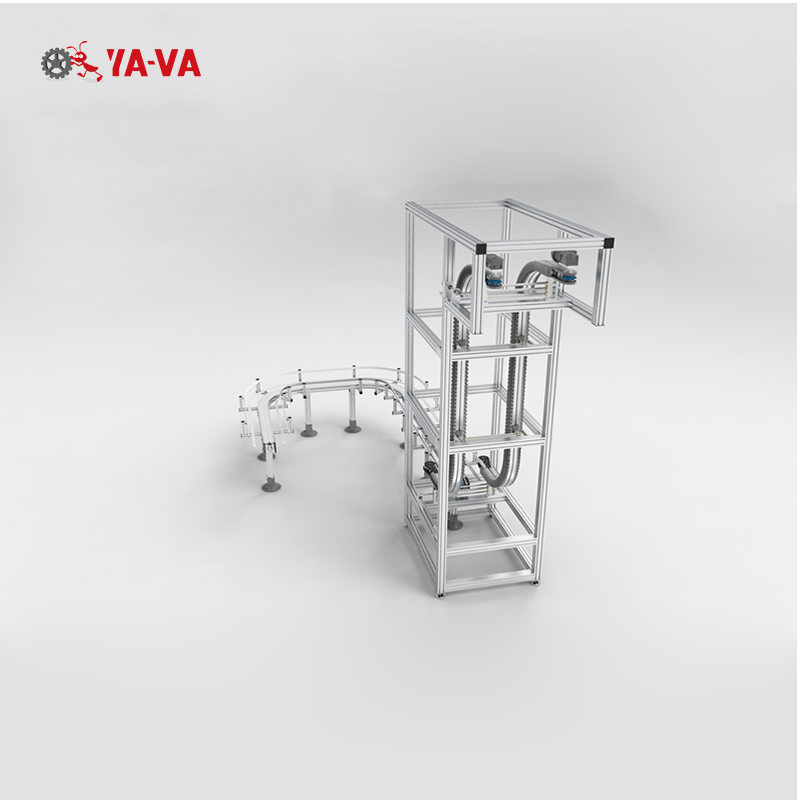

New Flexible Gripper Conveyors

A Gripper Conveyor has many uses: it can be used to elevate products, lower products, or buffer products.

It consists of 2 parallel sets of conveyor sections that are joined together on an adjustable mechanism which allows the unit to accommodate different size products.

The Gripper unit can be configured to allow the product to be transferred at the same or different input/output transfer heights, The unit gentle grips the product to be transferred and guides it to the next process.

Send email to us

Product Detail

Product Tags

Applicable Industries:

Food

Pharma and healthcare

Dairy

Tissue and hygiene

tobacco

Technical Parameters:

Model	DR-JCTS
Power	AC 220V/3ph、AC 380V/3ph
Output	According to design
Frame	AL SUS
Chain width	63 、83
Transferring width	12000
conveyor length	L=2230mm ,Projection length=2230mm,size can be customizied
Speed	<=45
Load	<=1
Width of conveyer	10-200
conveyor height	50-200
conveyor WeightW	660、750、950
Width	Can be adjustable according to product size
